CARACTERÍSTICAS

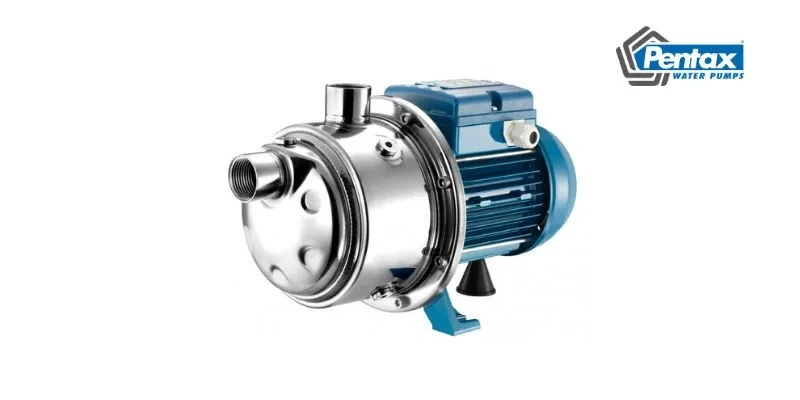

Características de las Electrobomba Pentax Ultra Noryl
- Cuerpo bomba acero cromo-níquel AISI 304
- Soporte motor aluminio
- Rodete Noryl®
- Sello mecánico cerámica-grafito ≤ 6 rodetes grafito-carburo de silicio ≥ 7 rodetes
- Eje motor acero cromo-níquel AISI 303
- Temperatura del liquído -5 ÷ +35 °C
- Presión de trabajo max 8,5 bar
Motor de las Electrobomba Pentax Ultra Noryl
- Motor de 2 polos a inducción 3~ 220/380V - 60Hz 1~ 220V - 60Hz con protección térmica hasta 1,85 kW
- Clase de aislamiento F
- Grado de protección IP44
MODELOS DISPONIBLES:
| Modelo | HP | Fase | Succ./Desc. | Q min./H max. (L/min x Mts.) | Q opt./H opt. (L/min x Mts.) | Q max./H min. (L/min x Mts.) |
|---|---|---|---|---|---|---|
| U 3-80/3 | 0.8 | Monof. | 1"/1" | 10 x 42.3 | 80 x 19.8 | 100 x 11.1 |
| U 5-120/3 | 1.2 | Monof. | 1"/1" | 30 x 44 | 100 x 30.1 | 150 x 11.3 |
| U 5-180/4 | 1.8 | Monof. | 1"/1" | 30 x 62.2 | 100 x 44.6 | 150 x 14.3 |
| U 5-180/4 | 1.75 | Monof. | 1"/1" | 40 x 63.2 | 100 x 49.8 | 140 x 32.2 |
| U 5-120/3T | 1.2 | Trif. | 1"/1" | 30 x 44 | 100 x 30.1 | 150 x 11.3 |
| U 5-180/4T | 1.8 | Trif. | 1"/1" | 30 x 62.2 | 100 x 44.6 | 150 x 14.3 |
| U 5-250/5T | 2.5 | Trif. | 1"/1" | 30 x 78.9 | 100 x 58.7 | 150 x 21.9 |
| U 5-250/5T | 2.5 | Trif. | 1"/1" | 40 x 79.0 | 100 x 61.9 | 140 x 40.5 |
| U 7-200/3T | 2.5 | Trif. | 1¼"/1" | 60 x 53.4 | 120 x 44.9 | 160 x 35.1 |
| U 7-200/3T | 2 | Trif. | 1¼"/1" | 40 x 52.3 | 120 x 41.9 | 180 x 23 |
| U 7-300/4T | 3 | Trif. | 1½"/1" | 40 x 68.9 | 120 x 54.6 | 180 x 31 |
| U 7-400/ST | 4 | Trif. | 1¼"/1" | 40 x 86.4 | 120 x 71 | 180 x 40 |
| U 9-200/3T | 2.5 | Trif. | 1 1/2"/1¼" | 70 x 47.5 | 190 x 35 | 260 x 22 |
| U 9-350/4T | 3.5 | Trif. | 1 1/2"/1½" | 60 x 62.1 | 180 x 47.3 | 280 x 21 |
| U 9-400/ST | 4 | Trif. | 1 1/2"/1¼" | 60 x 78.8 | 180 x 61.2 | 280 x 27.5 |
| U 18-400/3T | 4 | Trif. | 2"/1 1/2" | 100 x 47.1 | 340 x 32 | 460 x 17.2 |
