CARACTERÍSTICAS

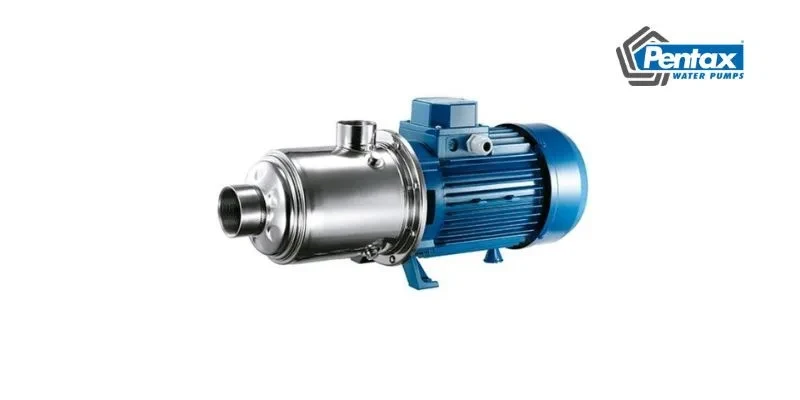

Características de las Electrobomba Pentax ULTRA ACERO INOXIDABLE
- Cuerpo bomba acero cromo-níquel AISI 304
- Soporte motor aluminio
- Rodete Noryl®
- Sello mecánico cerámica-grafito ≤ 6 rodetes grafito-carburo de silicio ≥ 7 rodetes
- Eje motor acero cromo-níquel AISI 303
- Temperatura del liquído -5 ÷ +35 °C
- Presión de trabajo max 8,5 bar
Motor de las Electrobomba Pentax ULTRA ACERO INOXIDABLE
- Motor de 2 polos a inducción 3~ 220/380V - 60Hz 1~ 220V - 60Hz con protección térmica hasta 1,85 kW
- Clase de aislamiento F
- Grado de protección IP44
MODELOS DISPONIBLES:
| Modelo | HP | Fase | Succ./Desc. | Q min./H max. (L/min x Mts.) | Q opt./H opt. (L/min x Mts.) | Q max./H min. (L/min x Mts.) |
|---|---|---|---|---|---|---|
| U 3S-120/4 | 1.2 | Monof. | 1"/1" | 10 x 69.2 | 80 x 27.8 | 100 x 16.7 |
| U 3S-150/5 | 1.5 | Monof. | 1"/1" | 10 x 73 | 80 x 36 | 100 x 22 |
| U 5S-120/3 | 1.2 | Monof. | 1"/1" | 30 x 44 | 100 x 30.1 | 150 x 11.3 |
| U 5S-180/4 | 1.8 | Monof. | 1"/1" | 30 x 63.2 | 100 x 48.3 | 150 x 26.7 |
| U 5S-180/4 | 1.75 | Monof. | 1"/1" | 30 x 61.1 | 100 x 48.3 | 150 x 28.6 |
| U 5S-120/3T | 1.2 | Trif. | 1"/1" | 30 x 44 | 100 x 30.1 | 150 x 11.3 |
| U 5S-180/4T | 1.75 | Trif. | 1"/1" | 30 x 61.1 | 100 x 48.3 | 150 x 28.6 |
| U 5S-180/4T | 1.8 | Trif. | 1"/1" | 30 x 63.2 | 100 x 48.3 | 150 x 26.7 |
| U 5S-250/5T | 2.5 | Trif. | 1"/1" | 30 x 79.6 | 100 x 61.5 | 150 x 34.6 |
| U 7S-200/3T | 2 | Trif. | 1¼"/1" | 40 x 50.8 | 120 x 43.2 | 190 x 23 |
| U 7S-200/3T | 2.5 | Trif. | 1¼"/1" | 60 x 50.7 | 120 x 44.7 | 180 x 31.6 |
| U 7S-300/4T | 3 | Trif. | 1¼"/1" | 40 x 67.7 | 120 x 58.2 | 190 x 31.8 |
| U 7S-400/5T | 4 | Trif. | 1¼"/1" | 40 x 85.2 | 120 x 74.7 | 190 x 41 |
| U 9S-200/3T | 2.5 | Trif. | 1½"/1¼" | 70 x 47 | 190 x 35.8 | 260 x 22.7 |
| U 9S-350/4T | 3.5 | Trif. | 1½"/1¼" | 60 x 62.7 | 180 x 48.5 | 280 x 21.5 |
| U 9S-400/5T | 4 | Trif. | 1½"/1¼" | 60 x 79.4 | 180 x 62.3 | 280 x 28.1 |
| U 18S-400/3T | 4 | Trif. | 2"/1½" | 100 x 47 | 340 x 33.1 | 460 x 20.5 |
